MediaTek introduces Filogic 880, Filogic 380

World's first complete Wi-Fi 7 platforms

MediaTekFilogic 880 380Combo 0522

MediaTek introduces the Filogic 880 and Filogic 380 Wi-Fi 7 platform solutions for high-bandwidth applications in the operator, retail, enterprise, and consumer electronics markets.

MediaTekFilogic 880 380Combo 0522

The Filogic 880 combines a Wi-Fi 7 access point with a new advanced host processor solution to provide the best router and gateway solution. It offers a scalable architecture that can support up to pentaband 4×4 with a maximum speed of 36Gbps. In addition, it is designed to bring Wi-Fi 7 to smartphones, tablets, TVs, notebooks, set-top boxes, and OTT streaming devices. Moreover, it combines a Wi-Fi 7 access point with a powerful application processor and network processing unit (NPU) to support full Wi-Fi, Ethernet, and packet processing performance and offers a wide range of interfaces and peripherals.

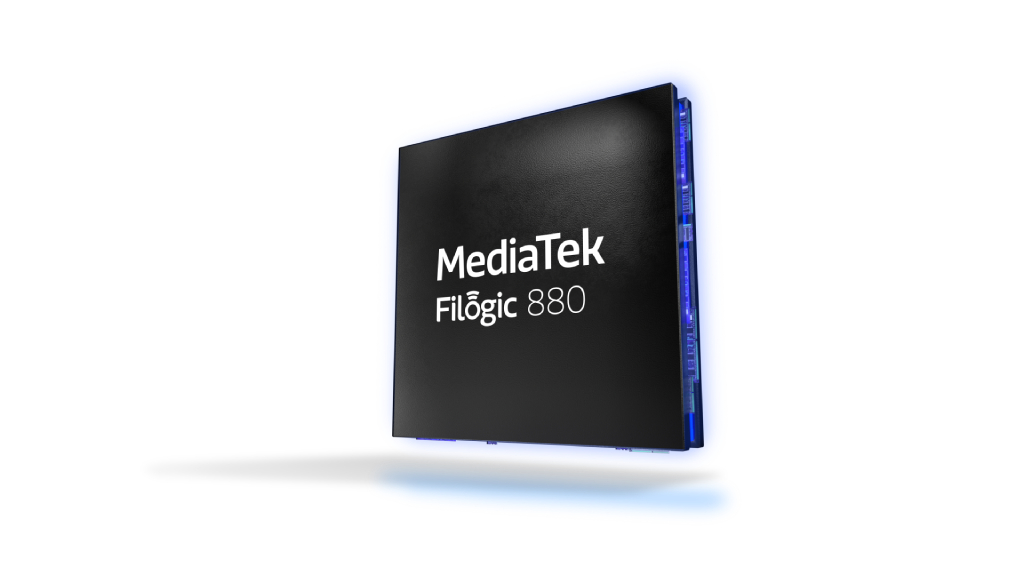

MediaTek Filogic 880 NFocus NOBG Shadow 0522

On the other hand, the chip’s dual concurrent 2×2 capability will be optimized “out-of-the-box” for the said devices as MediaTek also supplies the corresponding platform solutions. This will streamline the design process, maximize performance, and accelerate time-to-market.

The Filogic 880 platform includes a 6nm Wi-Fi 7 access point solution with:

  • Support for key Wi-Fi 7 technologies such as 4096-QAM, 320MHz, MRU and MLO
  • Flexibility to scale to pentaband 36Gbps speeds
  • Support up to 10Gbps in one channel
  • Support for OFDMA RU, MU-MIMO and MBSSID

The Filogic 880 platform also provides a host processor which includes a quad-core Arm Cortex-A73 application processor and an advanced NPU. Key features include:

  • An advanced hardware network full off-load engine on both Wi-Fi and Ethernet interface
  • A built-in networking crypto engine (EIP-197) for accelerating IPSec, SSL/TLS, DTLS (CAPWAP), SRTP and MACsec
  • Support for high-speed interfaces (5Gbps USB and 10Gbps PCI-Express), UART, SD, SPI, PWM, GPIO, and OTP for rich platform customization opportunities

Meanwhile, the Filogic 380 is a stand-alone, single-chip 6nm Wi-Fi 7 and Bluetooth 5.3 combo solution optimized for smartphones, TVs, notebooks, set-top boxes, OTT streaming devices, and many other consumer electronics devices that are powered by MediaTek SoCs.

MediaTek Filogic 380 NFocus NOBG Shadow 0522

Key features of the Filogic 380 include:

  • Support for key Wi-Fi 7 technologies such as 4096-QAM, 320MHz, MRU and MLO
  • Support for MLO offering up to 6.5Gbps speeds
  • Support up to 5Gbps in one channel
  • Support for 2.4GHz, 5GHz, and 6GHz bands
  • Support for dual 2×2 radios for dual-band simultaneous operation
  • Latest Bluetooth 5.3 with LE Audio

MediaTek will be demonstrating its Filogic Wi-Fi 7 platform solutions for both access point and client ecosystems at Computex 2022, which will be held from May 24 to May 27 in Taipei, Taiwan.
